Dongle - Dc Jack

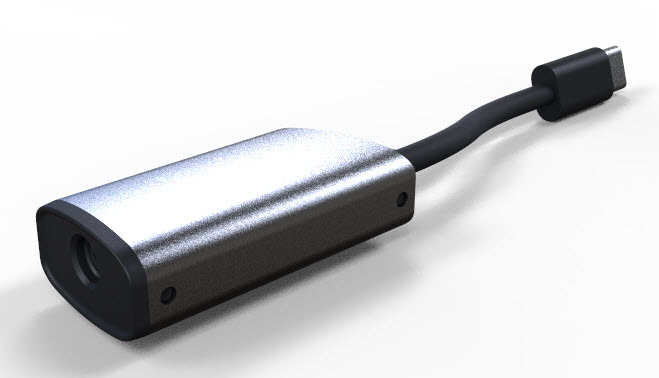

Outline
▶22mm(W)*35mm(L)*15mm(H)
▶Cable length: 50mm
▶DC-Jack: Circuit 4.5mm * 3.0mm
Protocol
Support
▶USB-IF PD3.0 certification
▶PDO: 5V / 9V / 12V / 15V / 20V
▶Support Qualcomm QC3.0
▶Support Huawei FCP
▶Support Samsung AFC
▶Support BC1.2

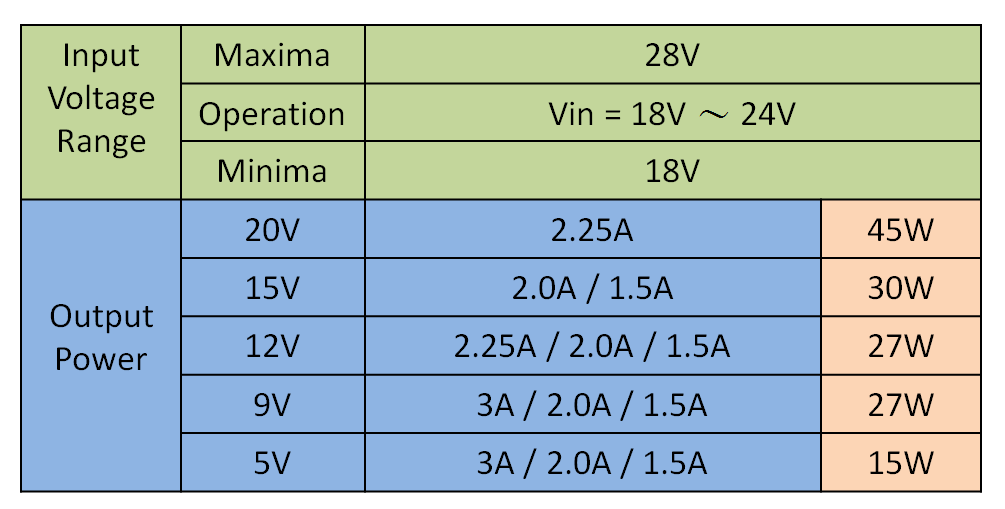

Electrical
▶Customer request PDO is possible
▶Maxima Power Output is up to 45W
▶Full set OVP / OCP / OTP protection
Others

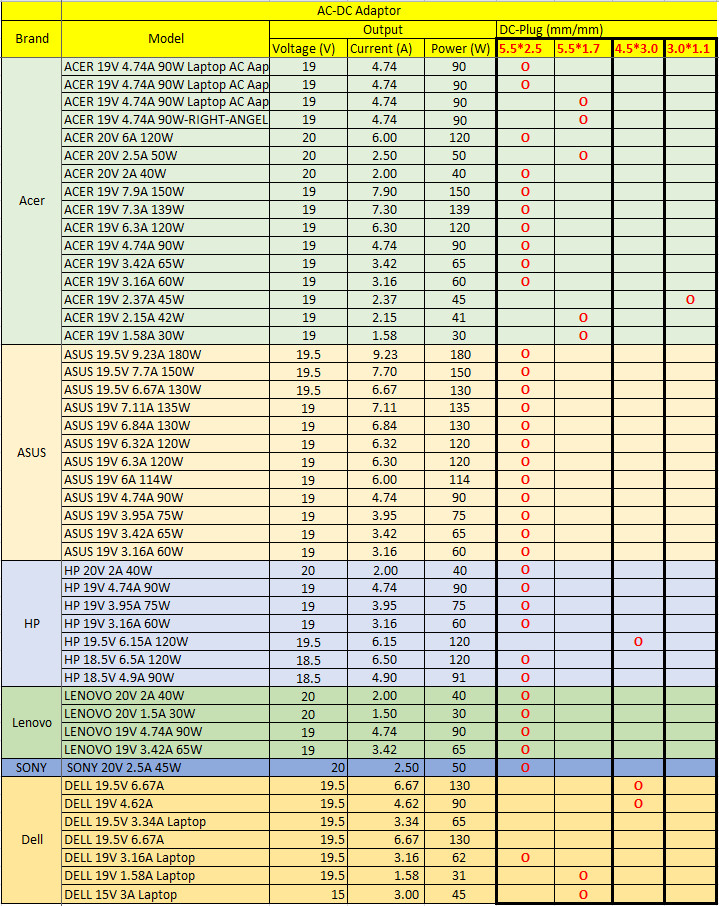

Compatible with Lenovo conventional adaptor, square base DC-Jack

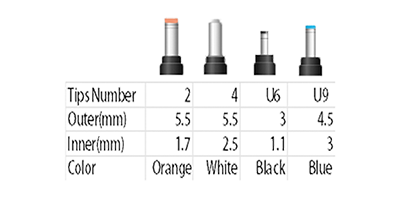

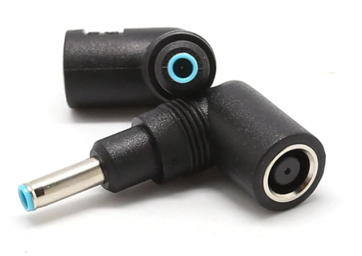

Adaptive DC-Jack translators are option for Dell/ HP/Acer/ASUS adaptors.
CN Patent is available
